1982 PIPER Archer PA-28-181 144mph, Great 4 place trainer!

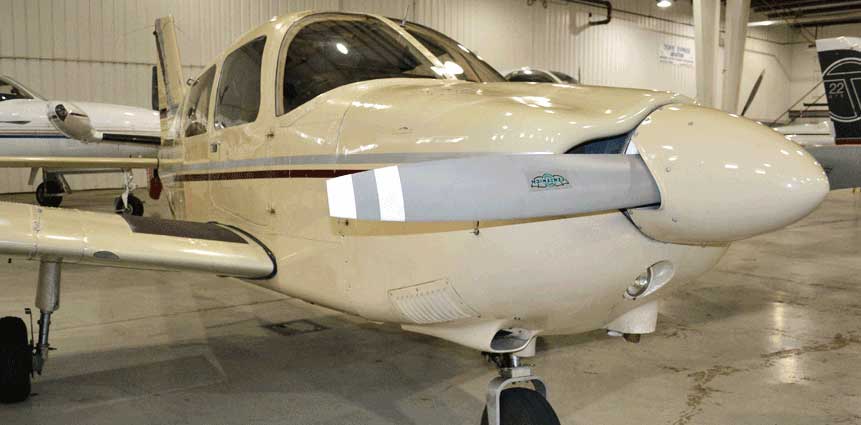

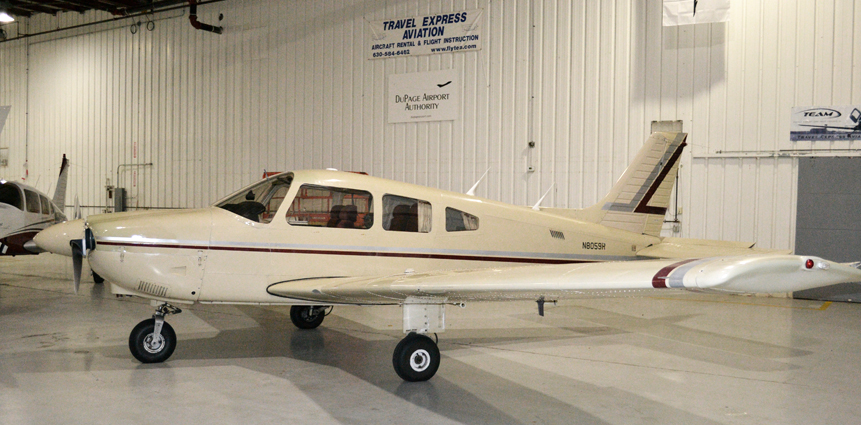

N8059R - Piper Archer

Part of the Piper PA28 Cherokee family of aircraft, designed for training and personal use. All-metal, unpressurized, single-engine, piston-powered with low-mounted wings and tricycle landing gear.

Features

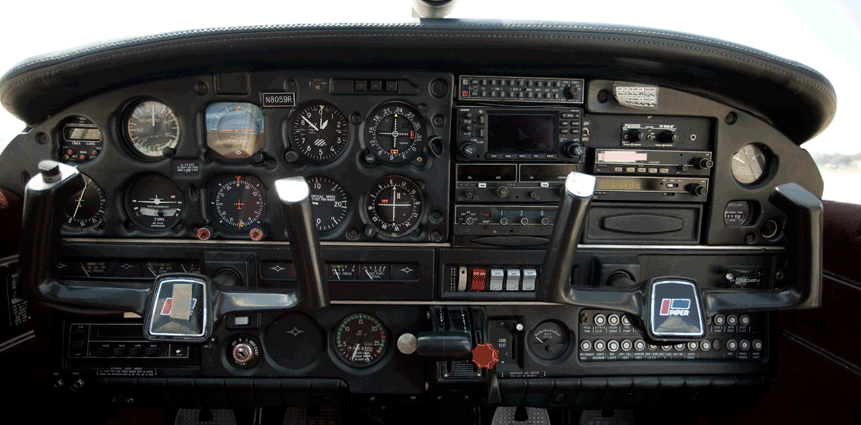

Garmin GNS 430 WAAS and Terrain GPS, King KX 165 Nav/Com, Dual ILS, King KN 62A DME, King KR87 ADF, Century 21 Autopilot, King KMA 24 Audio Panel, Marker Beacons, King KT76A Transponder/Mode C, P.S. Eng. 4 Place Intercom, Electric Trim, Digital Clock/Timer, Tanis Heater

The following Performance and Weight and Balance numbers are given for informational purposes only. Pilots should always consult the POH when calculating a true Weight and Balance prior to flight.

Performance

Vx: 65 knots
Va: 113 knots
Vno: 125 knots
Vs0: 49 knots



Vy: 76 knots
Vfe: 102 knots
Vne: 154 knots
Vs1: 55 knots

Weight and Balance

Gross Weight: 2,550
Max Useful: 968
Empty Weight: 1,582
EWCG: 86.55
Moment: 136929.84
Max useful with FULL fuel (48 gal = 288): 680
